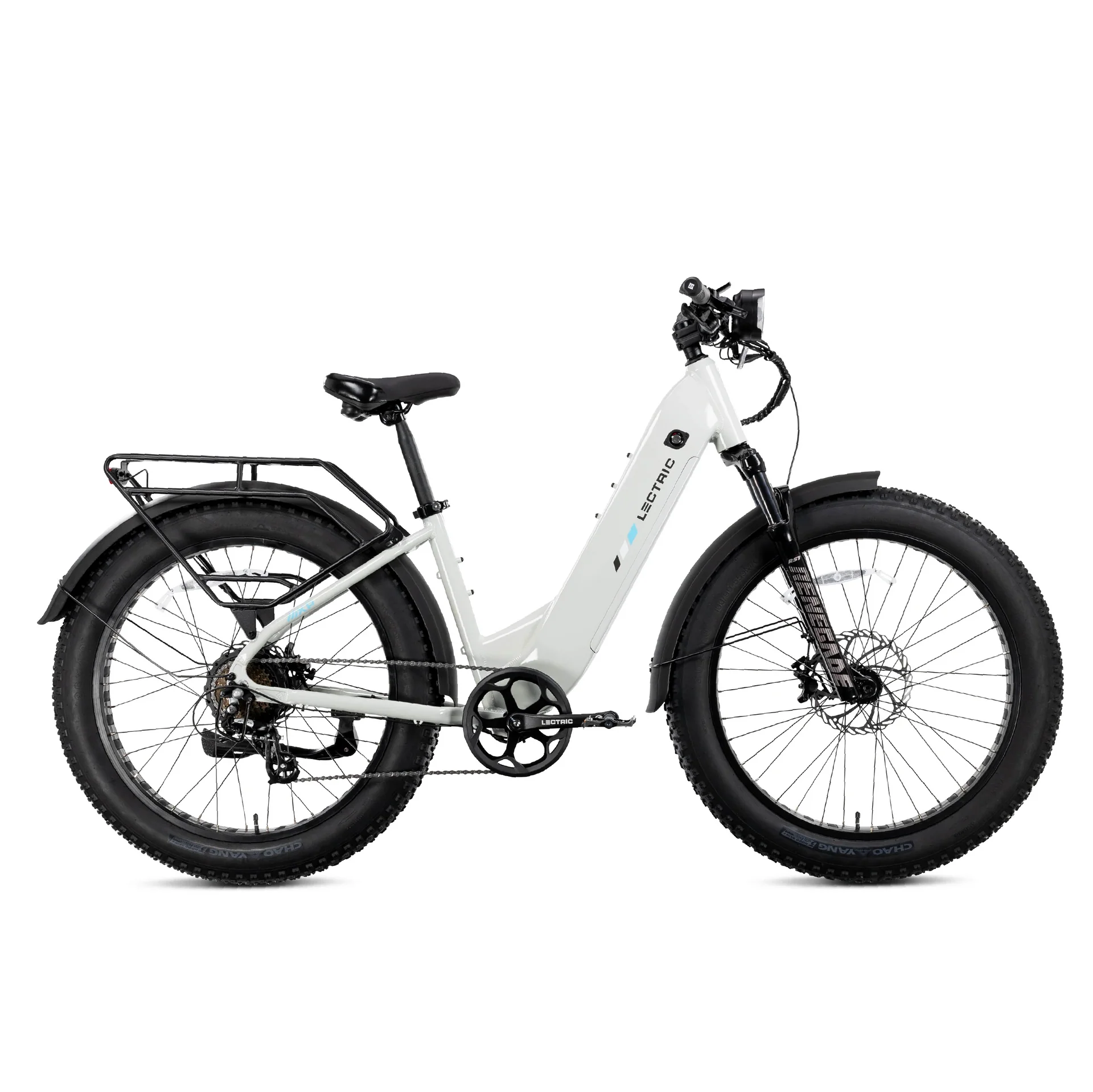

XPeak Step-Thru 2.0 eBike For Sale

The XPeak 2.0 is a newly upgraded version of the trail-ready, all-terrain eBike. Tested to the most aggressive safety standards for off-road eBikes (eMTB), and named by Men’s Health as a “Best of Sweat” winner in the 2025 Tech Awards, the XPeak 2.0 now comes standard with an industry-leading torque sensor that provides an exceptional riding experience with intuitive and controlled power delivery at each pedal stroke. Combined with the 750-watt Stealth M24 motor (1310 Peak) for a powerful yet hushed motor experience, the XPeak 2.0 delivers the muscle and speed to take on any terrain as a Class 1, 2, or 3 eBike. Additional upgrades include a newly designed hydroformed frame, a larger 203mm front disc brake rotor for maximum stopping power, an integrated color display, lock-on grips, and an 8-speed Shimano drivetrain.

TOP SPEED

28 mph

RANGE

up to 60 miles

PAYLOAD CAPACITY

330 lbs

MOTOR POWER

1310W peak

SUSPENSION FORK

80mm of travel

ASSEMBLY TIME

Under 5 minutes

Size Guide

Bike Dimensions75″L x 18″W x 43″H

Bike Dimensions with Front Wheel removed60″L x 10″W x 32″H

Stand Over Height19.5″

Handlebar Height42″

Bike Weight64.5 lbs w/o battery.

Bike Weight with Front Wheel removed57.2 lbs.

Payload CapacityMax: 330 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Rear Rack Weight 60 lbs.

Rider Payload CapacityMax: 330 lbs.

Seat to GroundMin: 33” / Max: 45”

Handlebar Width23.6″

Rider Height5’2” – 6’3”

Handlebar Reach20” – 23”

Specifications

Pedal-Assist

Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.**
Thumb Throttle

An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Motor Controller

A 24 amp controller swiftly distributes power to the motor and is IP-65 rated and potted for weather proofing and thermal management.
Motor

A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. New Stealth M24 technology is 400% quieter*, delivering a hushed motor experience without sacrificing power.
Semi-Integrated Battery

A removable 48V, 15Ah (720Wh) lithium-ion battery certified to UL 2271, integrated on the down tube of the frame with a color-matched plate, makes for a clean and easily-accessible design.† The XPeak is also certified to UL 2849.
Fat Tires

Puncture-resistant 26” x 4” knobby tires can handle any terrain with ease. Slime is installed to prevent flat tires at no additional cost.
Suspension Front Fork

Adjustable RST Renegade suspension fork with up to 80mm of travel provides shock absorption for a smooth ride.
Brakes

Hydraulic mineral oil brakes paired with a 203mm front rotor and a 180mm rear rotor (1.8mm thick) offer ultimate stopping power and peace of mind in wet or dry conditions.
Lectric PWR+™

Lectric’s new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting. Learn more about PWR here.
PAS Torque Sensor

A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
Drivetrain

11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
Crankset

Forged aluminum, 46-tooth chainring is the perfect ratio for effortless 26-inch wheel pedaling.
Chain

The XPeak’s KMC Z8.1 steel chain is equipped with anti rust protection and offers consistent tension and secure performance throughout your ride.
LCD Display

A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Safety Lights

An integrated safety system, featuring a headlamp and tail light powered by the battery allows you to be seen at any time of day.
Charging

An auxiliary charging port near the bottom bracket provides riders with the option to charge the eBike without removing the battery. The XPeak comes standard with a 2amp charger for 6-8 hour charging but a 5amp Fast Charger can be purchased separately to speed up charging by 250%.
Telescoping Seat Post

An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.
eMTB Safety Tested

A US-based bicycle testing lab put the XPeak through the rigorous eMTB safety standard testing process to prove the frame, fork, stem, and handlebars can handle off-road conditions ride after ride. The XPeak is rated to ISO 4210-10 eMTB.
Thru Axle

The front wheel features a Thru Axle wheel attachment system for a quick and easy installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for an easy and light-weight transport.
Removable Pedals

Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips

Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle

A custom-designed saddle compliments a sporty look while adding comfort so you can ride longer.
Kickstand

A heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.
Accessory Mounting Points

The XPeak frame features multiple mounting points throughout the eBike for various accessory combinations.
Hidden Cable Routing

The down tube of the frame houses the main cables for a premium experience at no extra cost.
Frame

The XPeak frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum is available in 2 different frame styles; a diamond High-Step and an easily mountable Step-Thru.
Color

Stratus White
Weight

With the battery removed, the XPeak 2.0 is just 64.5 lbs. The battery weighs 10.5 lbs.
Green Packaging

Packaging components are biodegradable and easily recyclable.
Assemble In Less Than Five Minutes

Simply attach the quick-release pedals and install the front wheel via the thru axle, then secure the handlebars with 4 screws.
Safety Certified

The Lectric XPeak is certified to UL 2849. Additionally, the XPeak’s lithium-ion battery is certified to UL 2271.
